About Paxarms NZ Ltd
For over 40 years, Paxarms NZ Ltd has been a trusted name in wildlife management and conservation. As pioneers in the design and manufacture of tranquilizer dart systems, we specialize in providing humane solutions for capturing and immobilizing animals safely and effectively. Our products are used by wildlife experts, veterinarians, and conservationists across the globe, enabling critical work in protecting animal populations and preserving biodiversity.
At Paxarms, we are committed to advancing the tools of conservation. Our tranquilizer guns, darts, marine biopsy darts, and syringe poles have been thoughtfully innovated to ensure both safety and precision, allowing professionals to manage wildlife with care and without harm. Whether it's for veterinary care, relocation, tissue sampling, or emergency animal control, our systems make a difference in the field.
Paxarms specializes in providing innovative solutions for wildlife management and veterinary care. Our products are designed to ensure humane and efficient handling of animals in various environments.

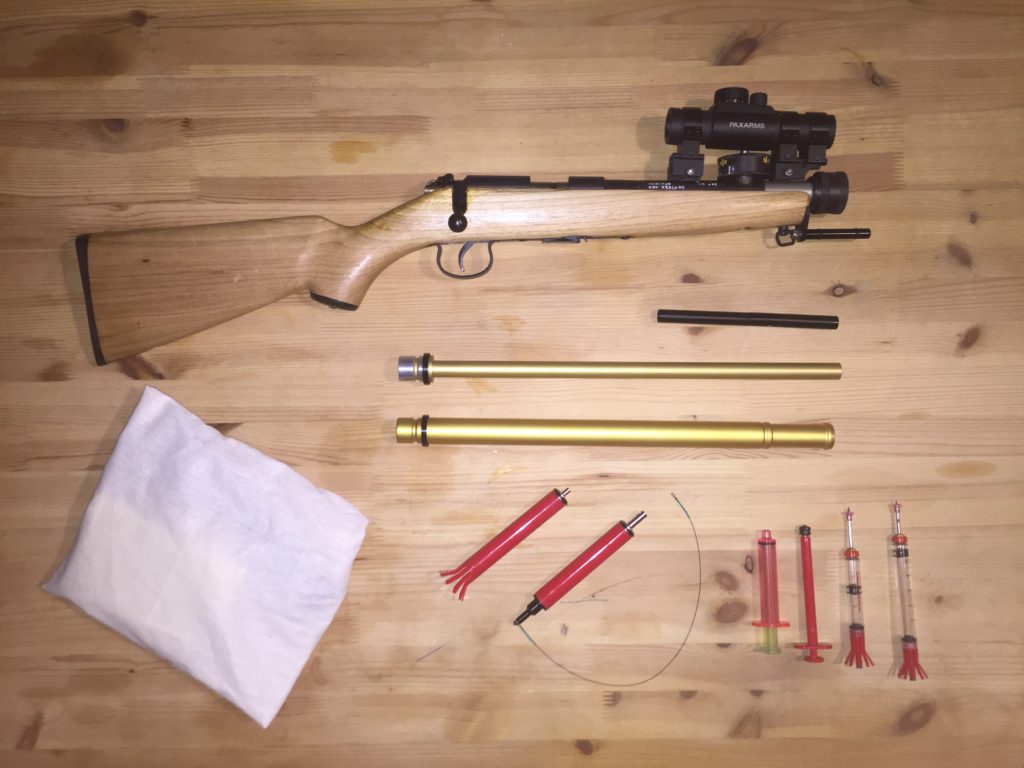

MK24c Projector
The PAXARMS MK24C PROJECTOR is the result of years of perfecting a humane, flexible and reliable delivery method for remote tranquillising and biopsy sampling of land and marine mammals. Its unique snap-on barrel system enables enhanced reload and with the purchase of an additional barrel it allows for fast reload for a second shot.
Key features include:
- PAXARMS RANGE CONTROL VALVE for minimal dart impact regardless of distance
- Red Dot Scope calibrated in METRES
- Uses PAXLOAD cartridges (DOLPHIN for lower power and WHALE for longer distances)
- Available as BIOPSY or REMOTE INJECTION SYSTEM
Technical Specifications
- MAKE: PAXARMS
- MODEL: MK24C*
- TYPE: DART PROJECTOR
- CALIBRE: .509 SNAP ON BARREL (REMOTE SYRINGE) / .745 SNAP ON BARREL (BIOPSY)
- BARREL: ANODIZED ALUMINIUM
- ACTION: BOLT ACTION
- MAGAZINE: 4 X BLANK CHARGES
- INTEGRATED SCOPE: OPTICAL RED DOT
- WEIGHT: 1.4 KG
- TOTAL LENGTH: 1.085 M
- BARREL LENGTH: .400mm
*SYSTEM INCAPABLE OF FIRING CONVENTIONAL .22 ROUNDS
INTENDED USE: VETERINARY REMOTE DRUG INJECTION & SCIENTIFIC USE FOR THE RETRIEVAL OF TISSUE SAMPLES FROM MARINE MAMMALS FOR EXAMPLE WHALE, DOLPHIN, SEALS OR LAND MAMMALS
MK24c Projector System Includes:
- PAXARMS MK24C Snap on barrel Projector with Fully Integrated Optical Red Dot Scope
- System Kit
- Hard Pelican Case* (*sold separately but non-optional when purchasing for export.)
System Kit Includes:
- Cleaning Rod
- Roll of Cloth Cleaning Strips
- Wire Chamber Brush
- Wire Syringe Barrel Brush (Syringe Dart system only)
- Insertion Rod Attachment
- PAXARMS Projector Oil
- PAXARMS Silicone
- MK24C Instructions
Syringe Dart Configuration:
- 1x Practice Dart
- Syringe Dart Barrel
- Dart Filing Unit
- Syringe Pump
- Gas Checks Packet of 10
- Needle Seals Packet of 100
- Tail Plugs Packet of 100
- Tail Valve Gaskets Packet of 10
Biopsy Configuration:
- 1x Practice Biopsy Float / Tether Dart
- Biopsy Barrel
Warrant of Fitness Servicing
PAXARMS offers a WARRANT OF FITNESS SERVICING for our projectors. Just courier your SYSTEM to us, and we will evaluate and recalibrate it back to factory standards. Please contact us for fees. We will inform you if there is any additional work needed before beginning any repairs. Do not hesitate to contact us regarding this service if you have any further questions.

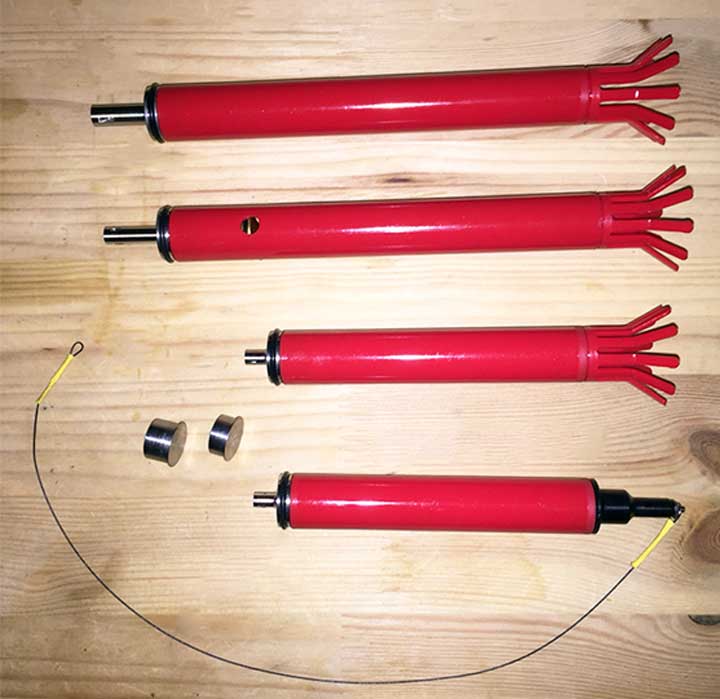

Remote Biopsy
The PAXARMS BIOPSY DART design is the direct result of over 30 years developing specialty darts for remotely taking blubber and skin samples from marine mammals. Constantly developed to minimise harm whilst yielding a high sample retention rate.
Key Features:
- FLOATATION DARTS in STANDARD and LARGE sizes
- LARGE size chamber for larger cutting heads when extra buoyancy is needed
- PAXARMS CUTTING HEADS with three internal prong sample retention design
- Cutting heads available in a wide range of dimensions (internal sample diameter by sample length in mm)
- Additional weights for sampling animals with thick fur
Dart Types:
TETHERED LINE DARTS:
Can be used with our TETHER REEL BARREL or for distances under 15m wound off the end of the barrel. Suited for those times when retrieval is difficult or you don't wish to disturb the animal retrieving the darts.
POLAR BEAR MARKING DART:
The perfect solution for those collecting multiple biopsy samples whilst identifying those animals already sampled. The weighted darts are available as TETHERED and with FLIGHTS. Darts leave distinctive STAR SHAPED ink marks on biopsy sight.

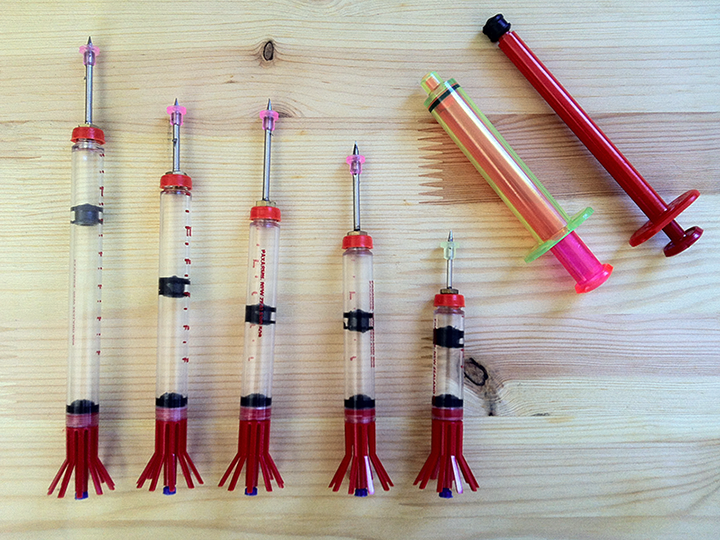

Remote Syringe
The PAXARMS REMOTE SYRINGE DARTS are the most durable on the market. Key features include:
- Made from special Polycarbonate material
- Withstands extreme temperatures
- Endures repeated use under rugged conditions
- Capable of delivering 1.5ml to 6.0ml
- Needles available in 12gauge and 14gauge, in various lengths

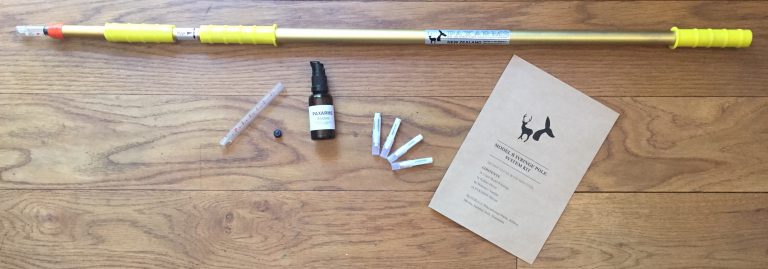

Syringe Pole
The PAXARMS MODEL B SYRINGE POLE extends from 95cm to 2.5 metres with a 5.0ml capacity. Paxarms Handhelds have a flexi-head, allowing for sudden animal movement allowing for humane drug delivery. Easy fill – per ml. calibrated syringe inserts directly into drug bottle to draw out the correct dosage.
System Includes:
- PAXARMS MODEL B POLE
- Spare 5.0ml Syringe Body
- Spare Rubber Piston
- 4 x Needles
- Bottle of PAXARMS SILICONE
Directions:
- Lubricate piston on the end of rod with PAXARMS SILICONE.
- Insert needle into syringe-body by removing plastic cover from hub.
- Push syringe body containing needle over the piston and onto the rod.
- Filling is achieved in the same manner as filling a conventional syringe. Simply insert into the drug bottle and draw calibrated body away from the rod to obtain the ml. dosage required.
- DO NOT USE SOLVENT CLEANING PRODUCTS AS THEY WILL COMPROMISE THE POLYCARBONATE PLASTIC AND SIGNIFICANTLY REDUCE THE LIFE OF YOUR EQUIPMENT.
Contact Us
- Order Inquiries: Reach out to us directly for any order-related questions or to place an order.
- Location: We are located in Aotearoa, New Zealand.
- Availability: Due to the bespoke nature of our products we make to order. Expect lead times depending on the product, stock-levels and your requirements.
- Payment Options: We accept SWIFT BANK PAYMENTS and National Direct Bank Deposits for your convenience.
- Exclusive Distributor: PAXARMS is the sole authorized distributor of its products, ensuring authenticity and quality.
- Support: For servicing or technical support, email us to schedule a call or Skype discussion at your earliest convenience.
Don't hesitate to reach out to us with any questions or concerns. We're here to help.
